RevDash - A Cutting-Edge Automotive Interface for Racing Telemetry
Table of Contents
Section 1 : Project Overview and Objectives
Section 2 : Hardware Development, Prototyping, and Technical Choices
Section 3 : Software Stack, Architecture, and Technical Choices
Section 4 : Hybrid Development Methodology and Testing
Section 5 : Scalability, High Availability, and Extensibility
Section 6 : Conclusion, Project Success and Lessons Learned
The world of motorsports is driven by performance, speed, and innovation. As technology continues to evolve, racing teams and enthusiasts seek new ways to gain insights into vehicle performance and enhance the overall racing experience. RevDash, an ambitious project developed by Heitech Software Solutions, aimed to revolutionize this space by creating an automotive interface that collects and displays real-time vehicle telemetry data on a web portal for users to access anywhere.
This case study explores the technical challenges, methodologies, and strategic choices behind the development of RevDash, focusing on the hardware prototype Soteria, software stack, and architectural decisions that contributed to the project's success. From leveraging a hybrid development methodology to employing cutting-edge technologies and rigorous testing, Heitech Software Solutions delivered a high-performance, reliable, and scalable solution that surpassed initial project objectives.
By examining the planning, execution, and outcomes of the RevDash project, this case study serves as an informative exploration of how innovative engineering and software development can come together to create a groundbreaking automotive interface that has the potential to transform the world of motorsports.
Section 1: Project Overview and Objectives

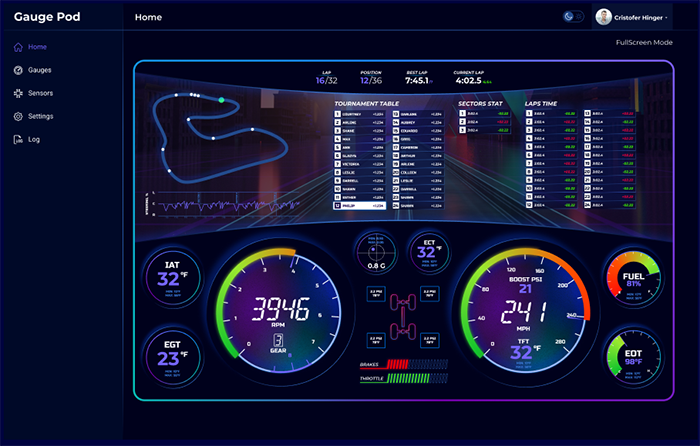

RevDash is a project aimed at developing an automotive interface for racing that collects vehicle telemetry data and displays it on a website in real-time. The primary objective was to create a hardware device that interfaces with a race vehicle's OBD/CAN Bus interface and various analog sensors to collect telemetry data, such as oil pressure, oil temperature, fuel pressure, vehicle speed, engine rpm, and more. Additionally, the device needed to collect local environmental data, including ambient temperature, GPS-based high-accuracy position data, and accelerometer readings to capture g-forces.
The data collected would then be streamed in real-time over a 5G network connection to a web portal where users, including social media followers of the driver, can view the telemetry data in real time. The project aimed to achieve an end-to-end latency of under 500 milliseconds for the data stream.
A significant challenge faced by the project was maintaining a consistent data stream, even when the connectivity was unreliable due to the nature of cellular communication in rural areas. Heitech Software Solutions, the company responsible for developing this product, built a hardware prototype and software stack to overcome these challenges and successfully meet the project's objectives.
Section 2: Hardware Development, Prototyping, and Technical Choices

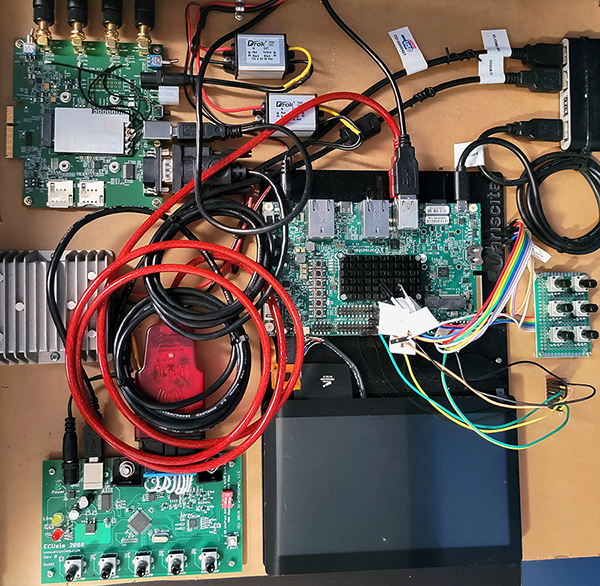

To address the project's requirements, Heitech Software Solutions developed a hardware prototype named Soteria. The device was built around a programmable MX8X Cortex-A35 microcontroller single-board computer (SBC) due to its low power consumption, high processing capabilities, and compatibility with various peripherals. The SBC's built-in OBD interface used ELM327 to capture vehicle telemetry, ensuring seamless communication with the vehicle's electronic control unit (ECU) and enabling access to a wide range of sensor data.
The Soteria prototype incorporated a Quectel 5G module for network connection and data streaming to the custom-built real-time IoT platform, code-named Iris. The Quectel 5G module was chosen for its high data throughput, low latency capabilities, and compatibility with existing 4G LTE networks to maintain connectivity even in areas with limited 5G coverage.
The device ran a lightweight version of Linux as the operating system, which provided a robust, flexible, and secure environment for the application. Python was used to develop the capture code due to its simplicity, extensive library support, and compatibility with the chosen hardware components.
During the development process, the team created detailed schematics and diagrams for the hardware interface, ensuring that all necessary components were appropriately integrated. This meticulous planning facilitated efficient hardware design and rapid prototyping. To validate the device's functionality and performance, the team built a desktop hardware prototype using an OBD simulator to generate test data.
After successfully testing the desktop solution, the prototype was field-tested on a Toyota 86 race vehicle at Toronto Motorsports Park. The Soteria prototype demonstrated its effectiveness, achieving less than 100-millisecond latency end-to-end while maintaining over 98% stream integrity. This performance surpassed the project's initial objectives and validated the technical choices made during the hardware development and prototyping stages.
Section 3: Software Stack, Architecture, and Technical Choices
Heitech Software Solutions employed a combination of technologies and architectural patterns to create a performant, scalable, and reliable software stack for the RevDash project. The choice of technologies aimed to address the challenges of processing and displaying real-time telemetry data with low latency, even under varying connectivity conditions.
The software stack included the .NET framework, Microsoft Blazor, Docker, Ubuntu Linux, RabbitMQ, MySQL, MongoDB, and Redis. Each component was chosen based on its ability to contribute to the overall performance, scalability, and reliability of the solution.
1. .NET framework and Microsoft Blazor were chosen for their flexibility, ease of development, and support for creating interactive web applications. Blazor also facilitated the creation of real-time, responsive user interfaces that could display telemetry data with minimal latency.
2. Docker and Ubuntu Linux were used to containerize and deploy the application components. This approach enabled consistent and reproducible deployments across development, testing, and production environments while providing isolation and resource management for each service.
3. RabbitMQ was selected as the messaging broker to handle real-time data streams between the hardware device and the software stack. Its high throughput, fault tolerance, and support for various messaging patterns made it an ideal choice for managing the high volume of telemetry data generated during a race.
4. MySQL and MongoDB were used to store configuration and telemetry data, respectively. MySQL provided a robust and performant solution for storing configuration data, while MongoDB's schema-less design, horizontal scalability, and fast read/write operations made it suitable for handling the large amounts of time-series telemetry data generated by the devices.
5. Redis was employed as a caching layer to boost performance and reduce the load on the database systems. Its in-memory storage, sub-millisecond latency, and support for various data structures made it well-suited for caching
Section 4: Hybrid Development Methodology and Testing
To ensure the successful development and implementation of the RevDash project, Heitech Software Solutions employed a hybrid development methodology, combining the best practices from both agile and traditional project management approaches. This strategy allowed the team to balance the flexibility and responsiveness of agile development with the structure and predictability of traditional methods.
The development process began with the creation of detailed schematics, diagrams, and graphic designs for both the hardware interface and the software architecture. This phase involved thorough planning, requirements analysis, and risk assessment, which are hallmarks of traditional project management. By doing so, the team established a solid foundation for the project, ensuring that all necessary components were identified and addressed.
Once the initial planning was complete, the team transitioned to an agile development approach, working in iterative sprints to build, test, and refine both the hardware and software components. This iterative process enabled the team to quickly identify and address any issues or challenges that arose during development, ensuring that the project stayed on track and met its objectives.
The testing process played a crucial role in the development cycle. The team utilized a range of testing methodologies, including unit testing, integration testing, and system testing to ensure the robustness and reliability of both the hardware and software components. In addition to the controlled testing environment, the team conducted field tests on a Toyota 86 race vehicle at Toronto Motorsports Park. This real-world testing allowed the team to evaluate the end-to-end performance of the solution, including latency and stream integrity, under realistic racing conditions.
Through the use of a hybrid development methodology and rigorous testing, Heitech Software Solutions successfully delivered a high-performance, reliable, and scalable solution that met the RevDash project's requirements and objectives.
Section 5: Scalability, High Availability, and Extensibility
In designing the RevDash solution, Heitech Software Solutions prioritized scalability, high availability, and extensibility to ensure the system could accommodate varying loads, maintain uptime, and support future enhancements.
1. Scalability: The system was architected to scale automatically based on the load, the number of vehicles sending data, and the number of observers receiving telemetry information. By utilizing containerization with Docker and deploying the solution on a cloud infrastructure, the team enabled the system to scale horizontally, adding or removing instances as needed to handle fluctuating demand. This approach ensured that the system could accommodate a growing user base and maintain performance during peak usage.
2. High Availability: To ensure continuous operation and minimize downtime, the team designed the system with redundancy and failover mechanisms. Critical components, such as databases and messaging brokers, were set up in clusters to provide fault tolerance. Load balancing and health checks were implemented to distribute traffic evenly among instances and automatically route around any failures. This high-availability design allowed the RevDash system to maintain data stream integrity and provide a reliable user experience.
3. Extensibility: The team implemented a robust API and microservice architecture to facilitate system extensibility. By breaking down the application into smaller, modular services, each responsible for a specific function, the team made it easier to add, modify, or replace components without affecting the overall system. The use of a well-defined API allowed for seamless integration with third-party services or applications, providing opportunities for future enhancements or collaborations.
Through careful planning and strategic technology choices, Heitech Software Solutions created a scalable, highly available, and extensible solution that not only met the immediate needs of the RevDash project but also provided a solid foundation for future growth and innovation.
Section 6: Conclusion, Project Success and Lessons Learned
The RevDash project presented numerous technical challenges, from collecting and processing real-time telemetry data to maintaining a reliable data stream under varying connectivity conditions. Heitech Software Solutions tackled these challenges by employing a hybrid development methodology, strategic technology choices, and thorough testing to ensure the successful delivery of the automotive interface.
The Soteria hardware prototype demonstrated its effectiveness in capturing and streaming vehicle telemetry data during field tests, achieving less than 100-millisecond latency end-to-end while maintaining over 98% stream integrity. The software stack, built using a combination of technologies and architectural patterns, provided a scalable, highly available, and extensible solution that could accommodate varying loads and support future enhancements.
Through meticulous planning, innovative engineering, and a focus on performance and reliability, Heitech Software Solutions successfully met the RevDash project's objectives. The resulting automotive interface has the potential to revolutionize how racing teams, fans, and enthusiasts interact with and experience motorsports, providing real-time insights into vehicle performance and fostering a deeper connection to the action on the track.
The development and implementation of the RevDash project provided valuable insights and lessons for Heitech Software Solutions. These lessons, gained through tackling technical challenges, navigating changing requirements, and working collaboratively, have contributed to the team's growth and future success in developing cutting-edge solutions.
1. The importance of a hybrid development methodology: The combination of agile and traditional project management approaches proved to be effective in balancing flexibility, responsiveness, and structure. This hybrid methodology enabled the team to adapt quickly to changes while maintaining focus on the overall project objectives.
2. Strategic technology choices: The selection of appropriate technologies and architectural patterns played a crucial role in achieving the desired performance, scalability, and reliability. By carefully evaluating and selecting the best-suited components, the team was able to create a robust, extensible, and future-proof solution.
3. Thorough testing and validation: Rigorous testing, both in controlled environments and real-world scenarios, was essential in ensuring the robustness and reliability of the hardware and software components. By identifying and addressing issues early, the team minimized the risk of failures and performance bottlenecks during deployment.
4. Collaboration and communication: Effective collaboration and open communication between team members, stakeholders, and end-users were vital in ensuring the project's success. By fostering a culture of shared knowledge and understanding, the team was able to make informed decisions, identify potential challenges, and work together towards a common goal.
5. Iterative improvement and learning: The RevDash project demonstrated the importance of continuous learning and improvement throughout the development process. By adopting an iterative approach, the team was able to refine and optimize the solution, ultimately delivering a product that exceeded initial expectations.
These lessons learned from the RevDash project have not only contributed to the project's success but also provided invaluable insights that will inform and guide Heitech Software Solutions in future endeavors, further strengthening their expertise in developing innovative and high-performance solutions.
As the RevDash project moves forward, its success serves as a testament to the power of collaboration, innovation, and the relentless pursuit of excellence in engineering and software development.
